Choosing the storage tech for the InterPro API

Protein Families Meeting

Gustavo A. Salazar
April 2017

Interhelp

Is there a method, either through an InterPro API, or through InterProScan to search the InterPro database not by sequence but instead by protein name?
I'm looking for a RESTful web service to query InterPro with a protein ID/Access like in the Interpro home page (http://www.ebi.ac.uk/interpro) and retrieving the results in JSON or XML.
is there a way to access the InterPro Domain Architecture (IDA) tool programmatically, e.g., via a REST API?
Is there any way to search for associated proteins and the relative coordinate with a Pfam ID from REST API please?
I'd like to ask whether there is a way to extract all protein domains in pfam and for instance, define which domains are present in a protein via web api?

InterPro 7: API

InterPro 7: Architecture

URL structure

https://<ServerName>/ [ENTRY]/ [PROTEOME]/ [PROTEIN]/ [STRUCTURE] [Block]: [ENDPOINT]/ [DATABASE]/ [ACCESSION]

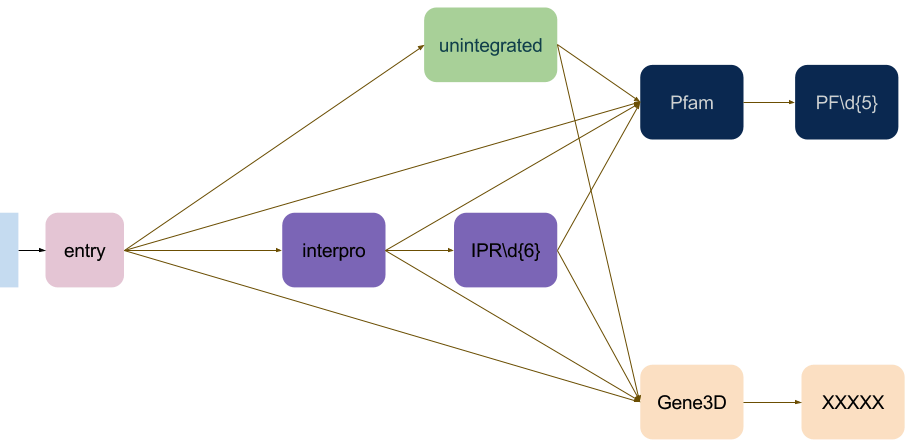

Entry: URL structure

https://<ServerName>/entry
https://<ServerName>/entry/interpro
https://<ServerName>/entry/pfam
https://<ServerName>/entry/interpro/pfam
https://<ServerName>/entry/interpro/pfam/PF00001

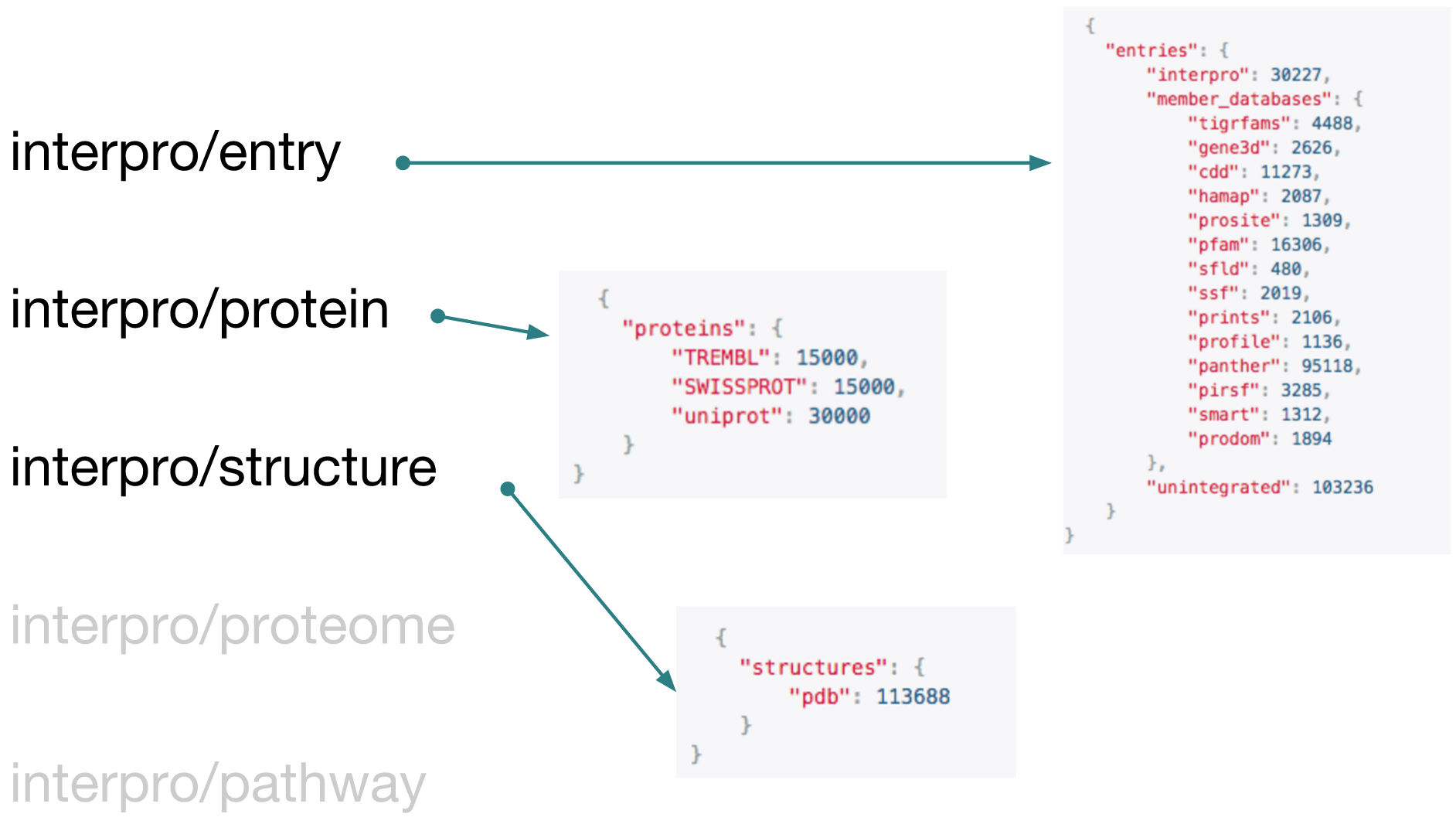

Endpoints - Nov 2016

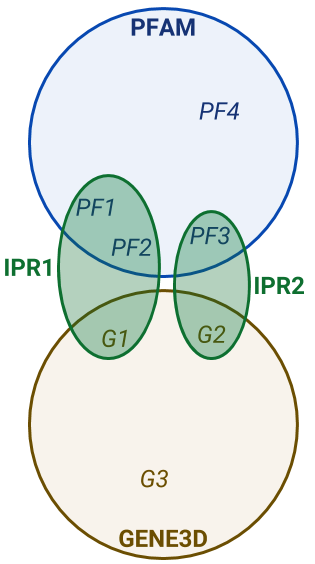

Data organization

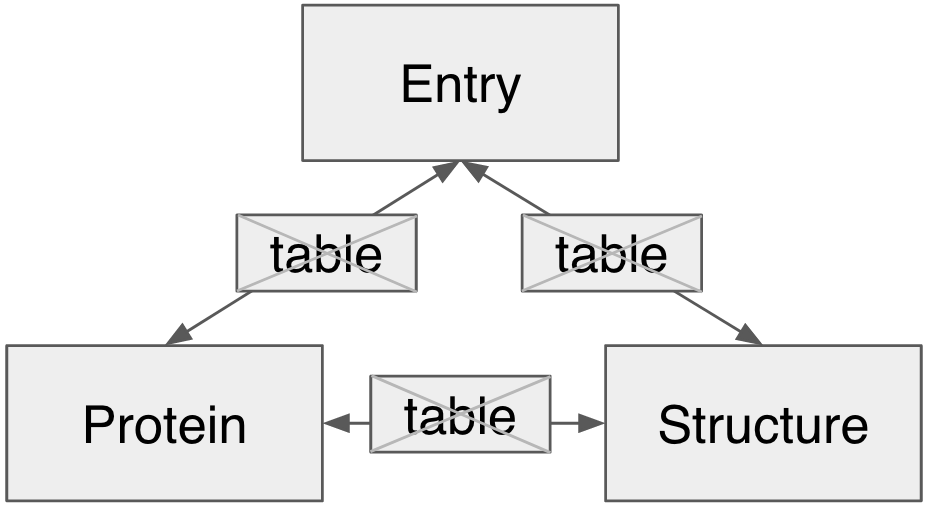

First attempt: MySQL

Pros
  • Reliable
  • Ease of cross-table
  • Returns exact counts
  • Can select subsets of results
  • Lots of experience in team
  • High support in Django - DRF
  • EBI supported


Cons
  • SLOW for Protein related queries
  • Scalability

Data organization

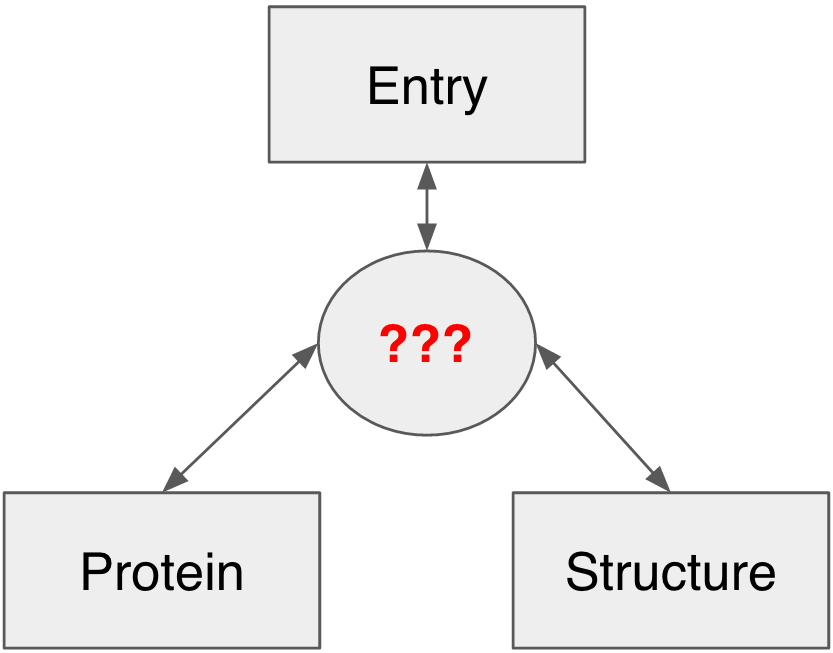

Second attempt: Hybrid (MySQL + No-normalized DB)

Pros
  • Number of JOINS reduced.
  • Django models are conserved
  • Speed at querying
  • Sharding
  • Replicates


Cons
  • No SQL
  • Low support in Django
  • Either slow or unreliable for writing operations
  • Some of these technologies are too new

Strategy

  • Shortlist potential technologies to use
  • Define a common dataset
  • Define a representative set of queries
  • Test performance

Technologies to test

Type Search Search Column DB Column DB (plugin)
Interface HTTP HTTP HTTP ODBC, JDBC
Query Language Lucene (extended) Lucene (extended) SQL (subset) SQL
Aggregations Facets Aggregations SQL SQL
JSON support Yes Yes Yes N/A
Type of server Java Java Native Native

Data set

Number of documents: 340,480,753

Entry (154,154)

InterPro 29,965
Panther 86,618
ProDom 1,844
Smart 1,312
Pfam 16,282
TIGRFAMs 4,488
CDD 11,005
HAMAP 2,087
Merops 1,115
Protein (60,604,408)

Swiss-Prot 536,539
TrEMBL 60,095,598
Structure (115,743)

PDB 115,743

Queries

Filter:

  1. All documents
  2. Swissprot proteins
  3. Trembl proteins
  4. Specific accession
  5. With a structure
  6. Specific structure
  7. Unintegrated entries

Actions:

  1. group by entry_db and count
  2. group by entry_db and count unique
  3. group by protein_db and count unique
  4. get unique entries
  5. get unique entries (plus filter)

Overall Results

Number of tests 35 35 35 30
Total Execution Time (min) 6.03 2.89 2.68 287.60

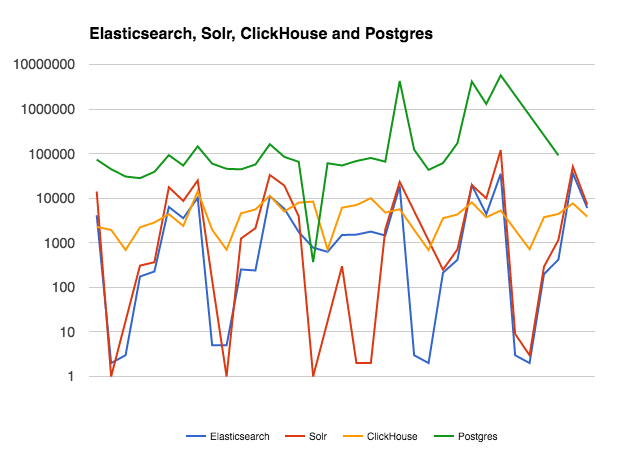

Comparison - First run

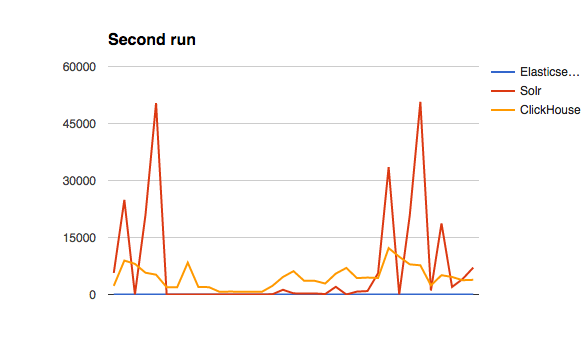

Comparison - Second run

And the winner is...

La La Land...

Elasticsearch
  • Second Fastest First run
  • Best in second run
  • Big community
  • Some EBI projects already use it.
  • Easy development after having an API prototype working with Solr

Potential Future Work

  • Data source exclusively in elasticsearch
  • Investigate sharding and replicates
  • Stress testing

Thanks!!
